AON6718L_101

Technical Details

• Series:SRFET™
• Package:Bulk
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:18A (Ta), 80A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:3.7mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id:2.2V @ 250µA

• Gate Charge (Qg) (Max) @ Vgs:72 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:4463 pF @ 15 V
• FET Feature:Schottky Diode (Body)
• Power Dissipation (Max):2.1W (Ta), 83W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

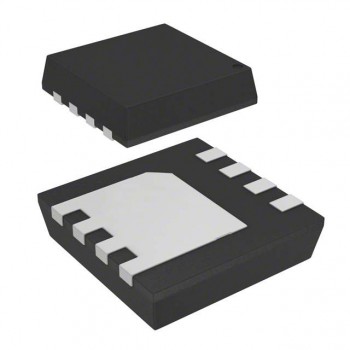

• Supplier Device Package:8-DFN (5x6)
• Package / Case:8-DFN
