MHQ1005P1N0ST000
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1NH 1.2A 30 MOHM SMD
- CategoryFixed Inductors
- Datasheet MHQ1005P1N0ST000 Datasheet
-
ECAD Model
- Share
In Stock: 14,876
Can ship immediately
Pricing:
- 1$0.24
- 10,000$0.08455
- 30,000$0.08182
- 50,000$0.07909
- 100,000$0.07636
Quote It
Technical Details
- Series:MHQ-P
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Multilayer
- Material - Core:Ceramic, Non-Magnetic
- Inductance:1 nH
- Tolerance:±0.3nH
- Current Rating (Amps):1.2 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):30mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:15GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.024" (0.60mm)
Related Products
FIXED IND 40NH 320MA 438MOHM SMD
- 1: $0.25000
FIXED IND 300NH 70MA 7.5 OHM SMD

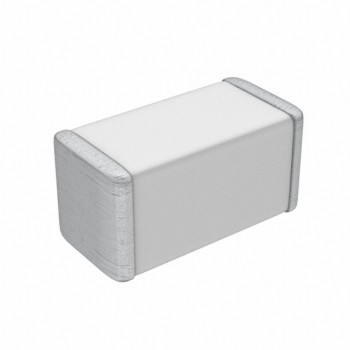

MLK1005SR30JT000 Datasheet- 1: $0.25000
