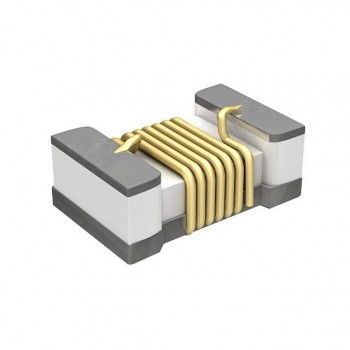

LQW03AW8N2J00D
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 8.2NH 290MA 260 MOHM
- CategoryFixed Inductors
- Datasheet LQW03AW8N2J00D Datasheet
-
ECAD Model
- Share
In Stock: 8,668
Can ship immediately
Pricing:
- 1$0.82
- 10$0.71469
- 100$0.51073
- 500$0.42899
- 1,000$0.34728
- 2,500$0.32685
Quote It
Technical Details
- Series:LQW03
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:8.2 nH
- Tolerance:±5%
- Current Rating (Amps):290 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):260mOhm Max
- Q @ Freq:40 @ 900MHz
- Frequency - Self Resonant:8.5GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.021" L x 0.016" W (0.53mm x 0.40mm)
- Height - Seated (Max):0.018" (0.45mm)
