NLCV32T-221K-PF
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 220UH 80MA 10.92 OHM
- CategoryFixed Inductors
- Datasheet NLCV32T-221K-PF Datasheet
-
ECAD Model
- Share
In Stock: 338
Can ship immediately
Pricing:
- 1$0.24
- 2,000$0.09702
- 4,000$0.09163
- 6,000$0.08624
- 10,000$0.08355
- 50,000$0.07816
- 100,000$0.07546
Quote It
Technical Details
- Series:NLCV-PF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:220 µH
- Tolerance:±10%
- Current Rating (Amps):80 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):10.92Ohm Max
- Q @ Freq:20 @ 796kHz
- Frequency - Self Resonant:7MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:796 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1210 (3225 Metric)
- Supplier Device Package:1210
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.094" (2.40mm)
Related Products
FIXED IND 15NH 460MA 160MOHM SMD
- 1: $0.24000

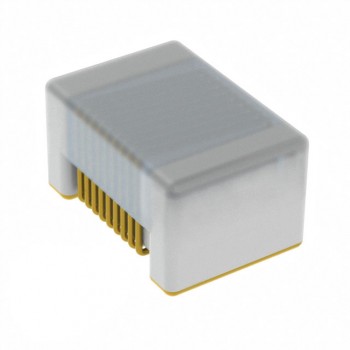

FIXED IND 23NH 700MA 140MOHM SMD
