NLV25T-R39J-PF
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 390NH 375MA 650 MOHM
- CategoryFixed Inductors
- Datasheet NLV25T-R39J-PF Datasheet
-
ECAD Model
- Share
In Stock: 369
Can ship immediately
Pricing:
- 1$0.24
- 2,000$0.09702
- 4,000$0.09163
- 6,000$0.08624
- 10,000$0.08355
- 50,000$0.07816
- 100,000$0.07546
Quote It
Technical Details
- Series:NLV-PF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:390 nH
- Tolerance:±5%
- Current Rating (Amps):375 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):650mOhm Max
- Q @ Freq:30 @ 25.2MHz
- Frequency - Self Resonant:375MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:25.2 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1008 (2520 Metric)
- Supplier Device Package:1008 (2520 Metric)
- Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):0.075" (1.90mm)
Related Products
FIXED IND 15NH 460MA 160MOHM SMD
- 1: $0.24000

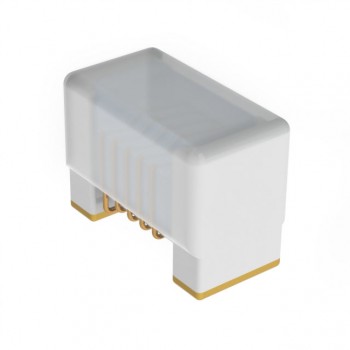

FIXED IND 23NH 700MA 140MOHM SMD
