LQH43PH100M26L
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 10UH 1.17A 176.4 MOHM
- CategoryFixed Inductors
- Datasheet LQH43PH100M26L Datasheet
-
ECAD Model
- Share
In Stock: 595
Can ship immediately
Pricing:
- 1$0.4
- 500$0.21
- 1,000$0.17
- 2,500$0.16
- 5,000$0.155
- 12,500$0.15
- 25,000$0.145
- 50,000$0.14
Quote It
Technical Details
- Series:LQH43
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:10 µH
- Tolerance:±20%
- Current Rating (Amps):1.17 A
- Current - Saturation (Isat):1.05A
- Shielding:Shielded
- DC Resistance (DCR):176.4mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:20MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.110" (2.80mm)
Related Products

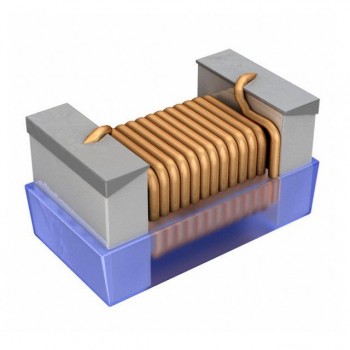

FIXED IND 22UH 70MA 11.4 OHM SMD
