NR5040T220M
TAIYO YUDEN
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 1.4A 163.8 MOHM
- CategoryFixed Inductors
- Datasheet NR5040T220M Datasheet
-
ECAD Model
- Share
In Stock: 12,458
Can ship immediately
Pricing:
- 1$0.44
- 1,500$0.1746
- 3,000$0.1649
- 7,500$0.1552
- 10,500$0.15035
- 37,500$0.1455
Quote It
Technical Details
- Series:NR
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:22 µH
- Tolerance:±20%
- Current Rating (Amps):1.4 A
- Current - Saturation (Isat):1.6A
- Shielding:Shielded
- DC Resistance (DCR):163.8mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:9MHz
- Ratings:-
- Operating Temperature:-25°C ~ 120°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.193" L x 0.193" W (4.90mm x 4.90mm)
- Height - Seated (Max):0.157" (4.00mm)
Related Products

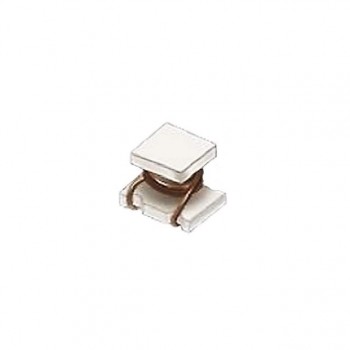

FIXED IND 1.2UH 150MA 2.38 OHM
- 1: $0.44000
- 2000: $ 0.27700

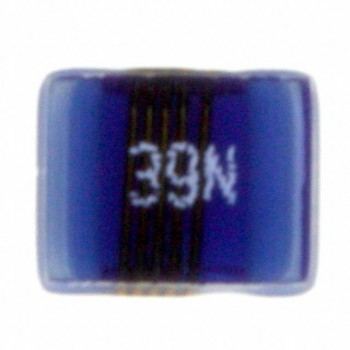

FIXED IND 39NH 1A 100 MOHM SMD
