SRU5028-100Y
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 10UH 1.8A 63 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRU5028-100Y Datasheet
-
ECAD Model
- Share
In Stock: 161
Can ship immediately
Pricing:
- 1$0.85
- 600$0.33915
- 1,200$0.27455
- 3,000$0.2584
- 6,000$0.2527
Quote It
Technical Details
- Series:SRU5028
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:10 µH
- Tolerance:±30%
- Current Rating (Amps):1.8 A
- Current - Saturation (Isat):1.4A
- Shielding:Shielded
- DC Resistance (DCR):63mOhm
- Q @ Freq:18 @ 2.52MHz
- Frequency - Self Resonant:25MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height - Seated (Max):0.118" (3.00mm)
Related Products
FIXED IND 220NH 13A 8 MOHM SMD
IHLP1616BZERR22M01 Datasheet- 1: $1.12000
- 4000: $ 1.06500
- 8000: $1.02950
FIXED IND 12UH 800MA 420 MOHM
- 1: $0.80000
- 500: $ 0.51000
FIXED IND 2.2UH 1.2A 72 MOHM SMD
CDRH3D16NP-2R2NC Datasheet- 1: $1.12000
- 1000: $ 0.51200
- 3000: $0.49600

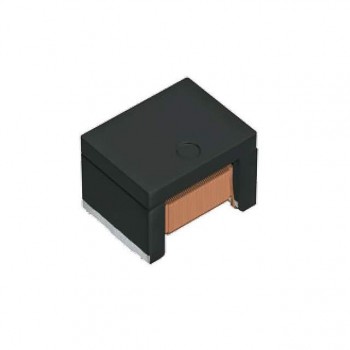

FIXED IND 47UH 500MA 900 MOHM
