• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionFIXED IND 5.6UH 3.6A 51 MOHM SMD
  • CategoryFixed Inductors
  • ECAD Model
  • Share
In Stock: 133

Can ship immediately

Pricing:
  • 1$1.58
  • 700$1.144

Quote It

Technical Details

  • Series:WE-MAPI
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Molded
  • Material - Core:Metal Composite
  • Inductance:5.6 µH
  • Tolerance:±20%
  • Current Rating (Amps):3.6 A
  • Current - Saturation (Isat):6A
  • Shielding:Shielded
  • DC Resistance (DCR):51mOhm Max



  • Q @ Freq:-
  • Frequency - Self Resonant:21MHz
  • Ratings:-
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:SMD
  • Size / Dimension:0.161" L x 0.161" W (4.10mm x 4.10mm)
  • Height - Seated (Max):0.122" (3.10mm)

Related Products


7440650047

FIXED IND 4.7UH 4.6A 23 MOHM SMD

  • 1: $1.76000
  • 1000: $ 1.14900

IHLP5050EZER100M01

FIXED IND 10UH 9A 25.5 MOHM SMD

IHLP5050EZER100M01 Datasheet
  • 1: $2.08000
  • 250: $2.08000
  • 500: $2.01500

7447706101

FIXED IND 100UH 1.9A 140MOHM SMD

  • 1: $1.75000

7440660022

FIXED IND 2.2UH 6.7A 10.5 MOHM

  • 1: $1.94000
  • 800: $ 1.27000

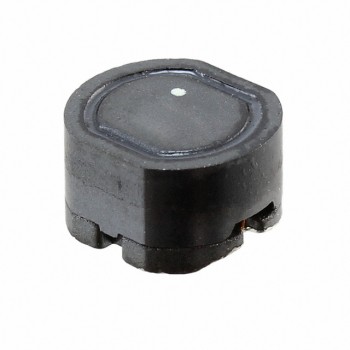

744787150

FIXED IND 15UH 2.3A 60 MOHM SMD

  • 1: $1.83000
  • 1000: $ 1.28100

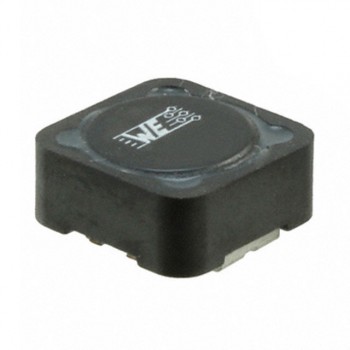

744771112

FIXED IND 12UH 3.91A 27 MOHM SMD

  • 1: $2.12000
  • 500: $ 1.30000
  • 1000: $1.11000

744373460047

FIXED IND 470NH 11.5A 4.2 MOHM

  • 1: $2.11000
  • 1000: $ 1.30001
  • 2000: $1.15000

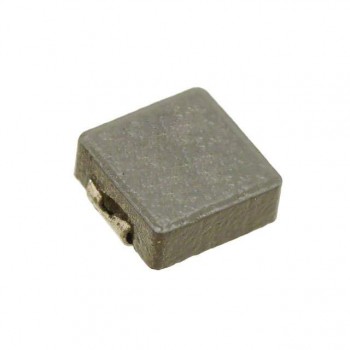

74437346100

FIXED IND 10UH 3A 85 MOHM SMD

  • 1: $2.11000
  • 1000: $ 1.30001
  • 2000: $1.15000

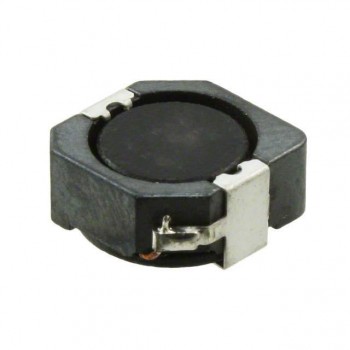

7447714681

FIXED IND 680UH 510MA 1.22 OHM

  • 1: $2.12000
  • 500: $ 1.30000
  • 1000: $1.11000

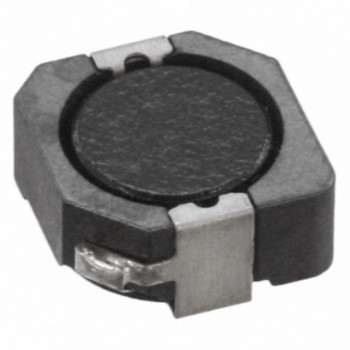

7447714471
