CDRH2D11/HPNP-100NC
Sumida Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 10UH 520MA 559 MOHM
- CategoryFixed Inductors
- Datasheet CDRH2D11/HPNP-100NC Datasheet
-
ECAD Model
- Share
In Stock: 202
Can ship immediately
Pricing:
- 1$0.6
- 1,500$0.255
- 3,000$0.24
- 7,500$0.2325
- 10,500$0.225
- 37,500$0.2175
Quote It
Technical Details
- Series:CDRH2D11/HP
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:-
- Material - Core:Ferrite
- Inductance:10 µH
- Tolerance:±30%
- Current Rating (Amps):520 mA
- Current - Saturation (Isat):520mA
- Shielding:Shielded
- DC Resistance (DCR):559mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.118" L x 0.118" W (3.00mm x 3.00mm)
- Height - Seated (Max):0.043" (1.10mm)
Related Products
FIXED IND 18UH 700MA 680 MOHM
- 1: $0.40000
- 500: $ 0.23730

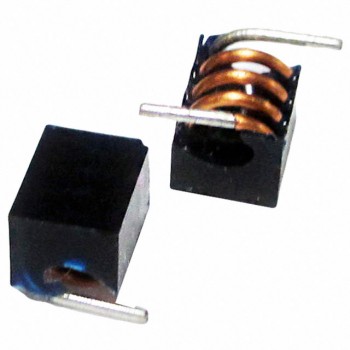

FIXED IND 47NH 2.8A 6.9 MOHM SMD
AIAC-1812-47NJ-T Datasheet- 1: $0.61000
- 2000: $ 0.27200
- 4000: $0.25600

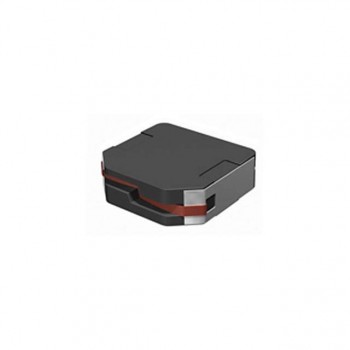

FIXED IND 2.2UH 2.2A 52 MOHM SMD
