LQH32MN3R3K23L
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.3UH 300MA 1 OHM SMD
- CategoryFixed Inductors
- Datasheet LQH32MN3R3K23L Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$0.29
- 2,000$0.11628
- 4,000$0.10982
- 6,000$0.10336
- 10,000$0.10013
- 50,000$0.09367
- 100,000$0.09044
Quote It
Technical Details
- Series:LQH32
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:3.3 µH
- Tolerance:±10%
- Current Rating (Amps):300 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1Ohm Max
- Q @ Freq:20 @ 1MHz
- Frequency - Self Resonant:38MHz
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:1210 (3225 Metric)
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.087" (2.20mm)
Related Products
FIXED IND 100NH 1A 160 MOHM SMD

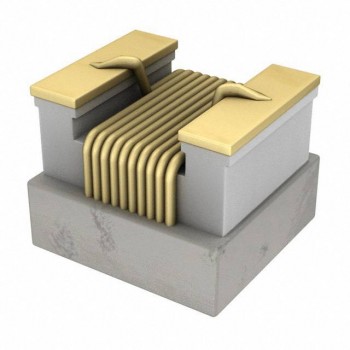

AISC-1008HQ-R10J-T Datasheet- 1: $0.31000
