VLS201610ET-2R2M-CA
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 950MA 276 MOHM
- CategoryFixed Inductors
- Datasheet VLS201610ET-2R2M-CA Datasheet
-
ECAD Model
- Share
In Stock: 151
Can ship immediately
Pricing:
- 1$0.48
- 2,000$0.2057
- 4,000$0.1936
- 6,000$0.18755
- 10,000$0.1815
- 50,000$0.1694
Quote It
Technical Details
- Series:VLS-E-CA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):950 mA
- Current - Saturation (Isat):940mA
- Shielding:Shielded
- DC Resistance (DCR):276mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max):0.037" (0.95mm)
Related Products
FIXED IND 22UH 350MA 1.764 OHM
- 1: $0.48000
- 2000: $ 0.20570
- 4000: $0.19360

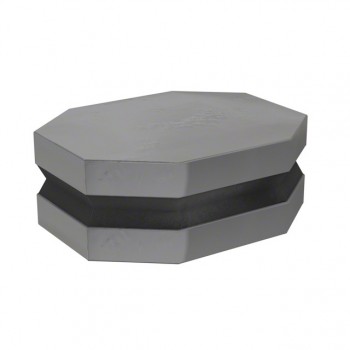

FIXED IND 4.7UH 810MA 405 MOHM
VLS252012ET-4R7M-CA Datasheet- 1: $0.53000
- 2000: $ 0.22440
- 4000: $0.21120

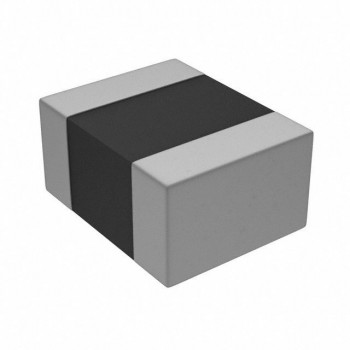

FIXED IND 1.5UH 2A 132 MOHM SMD
