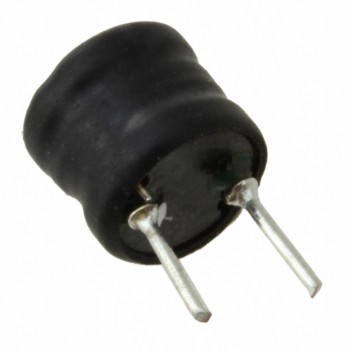

AIUR-05-6R8M
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 6.8UH 2.3A 22 MOHM TH
- CategoryFixed Inductors
- Datasheet AIUR-05-6R8M Datasheet
-
ECAD Model
- Share
In Stock: 127
Can ship immediately
Pricing:
- 1$0.2448
- 1,000$0.2448
Quote It
Technical Details
- Series:AIUR-05
- Package:Bulk
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:6.8 µH
- Tolerance:±20%
- Current Rating (Amps):2.3 A
- Current - Saturation (Isat):3.1A
- Shielding:Unshielded
- DC Resistance (DCR):22mOhm Max
- Q @ Freq:10 @ 7.96kHz
- Frequency - Self Resonant:24MHz
- Ratings:-
- Operating Temperature:-25°C ~ 85°C
- Inductance Frequency - Test:7.96 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.335" Dia (8.50mm)
- Height - Seated (Max):0.354" (9.00mm)
