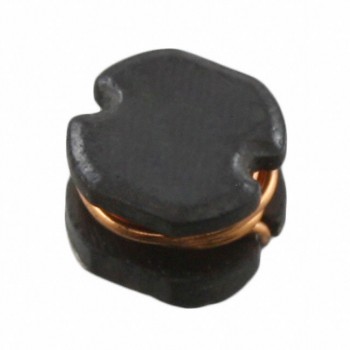

B82442T1124K000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 120UH 440MA 1.29 OHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 173
Can ship immediately
Pricing:
- 1$0.60104
Quote It
Technical Details
- Series:SIMID
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:120 µH
- Tolerance:±10%
- Current Rating (Amps):440 mA
- Current - Saturation (Isat):900mA
- Shielding:Unshielded
- DC Resistance (DCR):1.29Ohm Max
- Q @ Freq:20 @ 796kHz
- Frequency - Self Resonant:5.3MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 150°C
- Inductance Frequency - Test:796 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:2-SMD, J-Lead
- Supplier Device Package:-
- Size / Dimension:0.220" L x 0.197" W (5.60mm x 5.00mm)
- Height - Seated (Max):0.209" (5.30mm)
