SRP5030TA-R10Y

J.W. Miller / Bourns
In Stock: 101

Can ship immediately

Pricing:
  • 1$0.7744
  • 2,000$0.7744

Quote It

Technical Details

  • Series:SRP5030TA
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Carbonyl Powder
  • Inductance:100 nH
  • Tolerance:±30%
  • Current Rating (Amps):23 A
  • Current - Saturation (Isat):27A
  • Shielding:Shielded
  • DC Resistance (DCR):3mOhm Max



  • Q @ Freq:5 @ 100kHz
  • Frequency - Self Resonant:320MHz
  • Ratings:AEC-Q200
  • Operating Temperature:-40°C ~ 150°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Supplier Device Package:-
  • Size / Dimension:0.224" L x 0.205" W (5.70mm x 5.20mm)
  • Height - Seated (Max):0.118" (3.00mm)

Related Products


SRP5030TA-R22M

FIXED IND 220NH 15.5A 4.4MOHM SM

SRP5030TA-R22M Datasheet
  • 1: $0.77440
  • 2000: $0.77440

HCM0703-R47-S

FIXED INDUCTOR 680NH

HCM0703-R47-S Datasheet
  • 1: $0.70400
  • 1500: $0.70400

AL01647N0JTS

FIXED IND 47NH 3A 5.6 MOHM SMD

AL01647N0JTS Datasheet
  • 1: $0.70560
  • 1000: $0.70560

AL01682N0JTS

FIXED IND 82NH 2.5A 9.4 MOHM SMD

AL01682N0JTS Datasheet
  • 1: $0.70560
  • 1000: $ 0.70560

RL855-100M-RC

FIXED IND 10UH 2.5A 70 MOHM TH

RL855-100M-RC Datasheet
  • 1: $0.70560
  • 1000: $0.67200

RL855-101K-RC

FIXED IND 100UH 810MA 520MOHM TH

RL855-101K-RC Datasheet
  • 1: $0.70560
  • 1000: $0.67200

RL855-102K-RC

FIXED IND 1MH 250MA 5.28 OHM TH

RL855-102K-RC Datasheet
  • 1: $0.70560
  • 1000: $0.67200

RL855-103K-RC

FIXED IND 10MH 81MA 55.7 OHM TH

RL855-103K-RC Datasheet
  • 1: $0.70560
  • 1000: $0.67200

RL855-120M-RC

FIXED IND 12UH 2.4A 80 MOHM TH

RL855-120M-RC Datasheet
  • 1: $0.70560
  • 1000: $0.67200

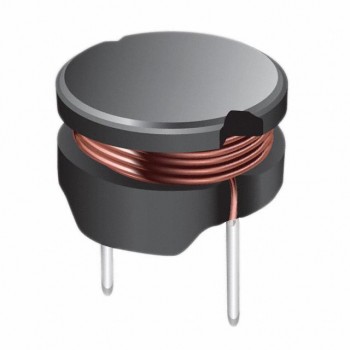

RL855-121K-RC
