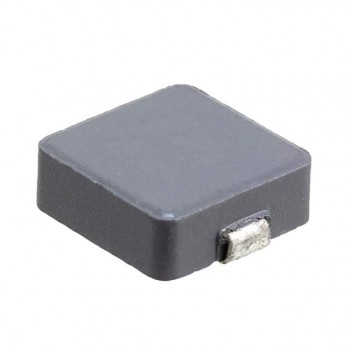

SRP1038A-R33M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 330NH 31A 1.2 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRP1038A-R33M Datasheet
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
- 1$0.756
- 500$0.756
Quote It
Technical Details
- Series:SRP1038A
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Carbonyl Powder
- Inductance:330 nH
- Tolerance:±20%
- Current Rating (Amps):31 A
- Current - Saturation (Isat):60A
- Shielding:Shielded
- DC Resistance (DCR):1.2mOhm Max
- Q @ Freq:15 @ 100kHz
- Frequency - Self Resonant:108MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 150°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.433" L x 0.394" W (11.00mm x 10.00mm)
- Height - Seated (Max):0.157" (4.00mm)
