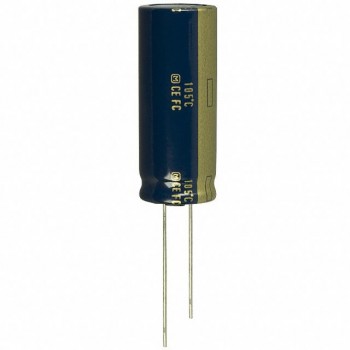

EEU-FK1V222
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2200UF 20% 35V RAD TH
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 434
Can ship immediately
Pricing:
- 1$2.33
- 10$1.88822
- 100$1.44149
- 500$1.09829
- 1,000$0.96099
- 2,500$0.93355
Quote It
Technical Details
- Series:FK
- Package:Bulk
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:2.208 A @ 120 Hz
- Ripple Current @ High Frequency:2.76 A @ 100 kHz
- Impedance:19 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
