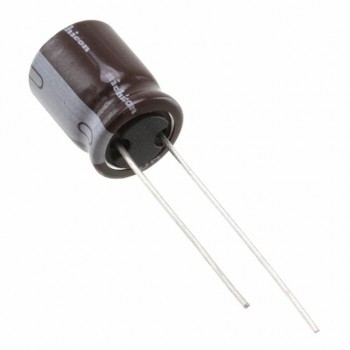

UPJ1V271MHD6TO
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 270UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPJ1V271MHD6TO Datasheet
-
ECAD Model
- Share
In Stock: 1,056
Can ship immediately
Pricing:
- 1$0.77
- 500$0.27214
- 1,000$0.23132
- 2,500$0.21771
- 5,000$0.2041
- 12,500$0.1871
- 25,000$0.18369
- 50,000$0.17689
Quote It
Technical Details
- Series:UPJ
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:270 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:690 mA @ 120 Hz
- Ripple Current @ High Frequency:920 mA @ 10 kHz
- Impedance:130 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):0.650" (16.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
