UWD1C220MCL1GS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22UF 20% 16V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UWD1C220MCL1GS Datasheet
-
ECAD Model
- Share
In Stock: 900
Can ship immediately
Pricing:
- 1$0.52
- 1,000$0.13914
- 2,000$0.13096
- 5,000$0.12277
- 10,000$0.11459
- 25,000$0.1105
- 50,000$0.1064
- 100,000$0.10232
Quote It
Technical Details
- Series:UWD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:-
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:75 mA @ 120 Hz
- Ripple Current @ High Frequency:150 mA @ 100 kHz
- Impedance:760 mOhms
- Lead Spacing:-
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.228" (5.80mm)
- Surface Mount Land Size:0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

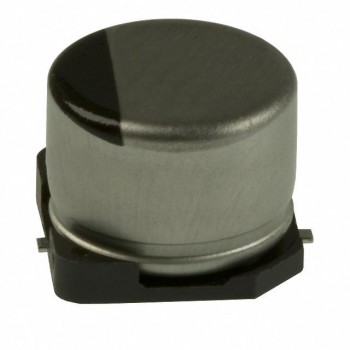

CAP ALUM 33UF 35VDC 20% SMD
- 1: $0.52000

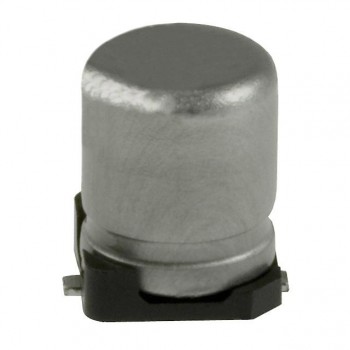

CAP 470 UF 20% 25 V
