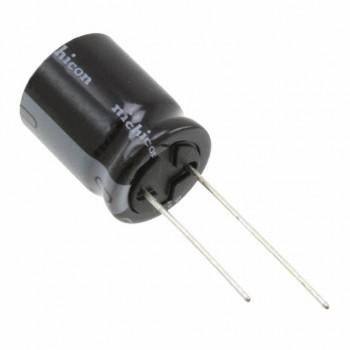

UPM1V821MHD6
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 820UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPM1V821MHD6 Datasheet
-
ECAD Model
- Share
In Stock: 153
Can ship immediately
Pricing:
- 1$1.32
- 10$1.03879
- 100$0.77892
- 500$0.58851
- 1,000$0.51927
- 2,500$0.48466
- 5,000$0.47081
Quote It
Technical Details
- Series:UPM
- Package:Bulk
- Part Status:Active
- Capacitance:820 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.38 A @ 120 Hz
- Ripple Current @ High Frequency:1.62 A @ 10 kHz
- Impedance:38 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):0.669" (17.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
