In Stock: 4,018

Can ship immediately

Pricing:
  • 1$0.46
  • 10$0.435
  • 100$0.3397
  • 500$0.29894
  • 1,000$0.25138
  • 5,000$0.2242
  • 10,000$0.21061

Quote It

Technical Details

  • Series:MTA-156
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.400" (10.16mm)



  • Contact Length - Post:0.175" (4.45mm)
  • Overall Contact Length:0.700" (17.78mm)
  • Insulation Height:0.425" (10.80mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600VAC

Related Products


2132415-8

CONN HEADER VERT 8POS 2.5MM

2132415-8 Datasheet
  • 1: $0.46000
  • 10: $0.42729
  • 100: $0.32772

68015-410HLF

CONN HEADER R/A 10POS 2.54MM

68015-410HLF Datasheet
  • 1: $0.46000
  • 10: $0.43444
  • 100: $0.33907

68000-409HLF

CONN HEADER VERT 9POS 2.54MM

68000-409HLF Datasheet
  • 1: $0.46000
  • 10: $0.44118
  • 100: $0.31562

1969803-1

CONN HEADER VERT 3POS 6.35MM

  • 1: $0.46000
  • 10: $0.43278
  • 25: $0.39203

20021112-00006T4LF

CONN HEADER R/A 6POS 1.27MM

20021112-00006T4LF Datasheet
  • 1: $0.46000
  • 10: $0.43590
  • 100: $0.33427

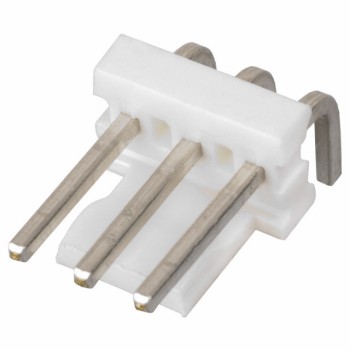

640387-3

CONN HEADER R/A 3POS 3.96MM

640387-3 Datasheet
  • 1: $0.46000
  • 10: $0.42770
  • 100: $0.33463

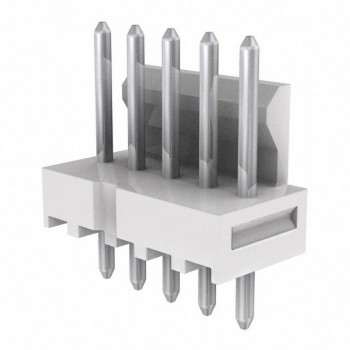

0022045053

CONN HEADER VERT 5POS 2.54MM

0022045053 Datasheet
  • 1: $0.46000
  • 10: $0.43300
  • 100: $0.30330

M20-9991246

CONN HEADER VERT 12POS 2.54MM

M20-9991246 Datasheet
  • 1: $0.46000
  • 10: $0.43177
  • 100: $0.30224

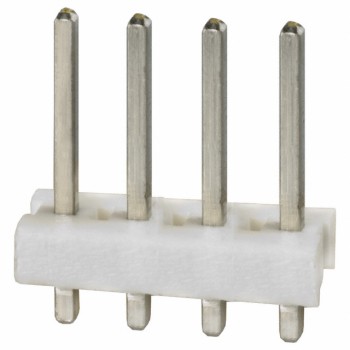

640383-4

CONN HEADER VERT 4POS 3.96MM

640383-4 Datasheet
  • 1: $0.46000
  • 10: $0.44467
  • 100: $0.31842

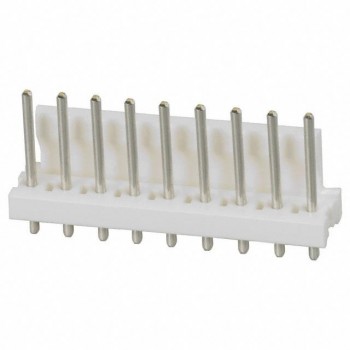

640388-9
