2316-6121-TG

3M
In Stock: 6,310

Can ship immediately

Pricing:
  • 1$1.27
  • 10$1.11963
  • 100$0.96561
  • 500$0.79004
  • 1,000$0.70226
  • 5,000$0.61448
  • 10,000$0.58375

Quote It

Technical Details

  • Series:2300
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.450" (11.43mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


1-917337-5

CONN HEADER VERT 2POS 5.08MM

1-917337-5 Datasheet
  • 1: $1.27000
  • 10: $1.13061
  • 100: $0.98626

1719740005

CONN HEADER R/A 5POS 2.54MM

1719740005 Datasheet
  • 1: $1.27000
  • 35: $1.04857
  • 105: $0.96114

1719750005

CONN HEADER R/A 5POS 2.54MM

1719750005 Datasheet
  • 1: $1.28000
  • 32: $1.05938
  • 128: $0.97109

0430450226

CONN HEADER VERT 2POS

0430450226 Datasheet
  • 1: $1.31000
  • 10: $1.15361
  • 25: $1.08618

5-103672-2

CONN HEADER R/A 3POS 2.54MM

5-103672-2 Datasheet
  • 1: $1.29000
  • 52: $1.02449
  • 104: $0.98001

1722862202

CONN HEADER VERT 2POS 3.5MM

1722862202 Datasheet
  • 1: $1.29000
  • 10: $1.13600
  • 100: $0.97970

292171-6

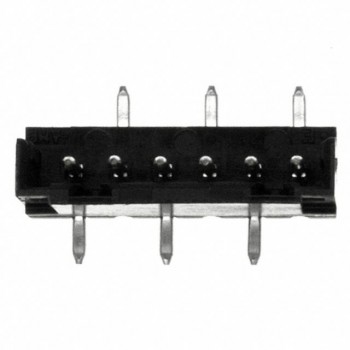

CONN HEADER SMD 6POS 2MM

292171-6 Datasheet
  • 1: $1.30000
  • 30: $1.07577
  • 120: $0.98617

826468-3

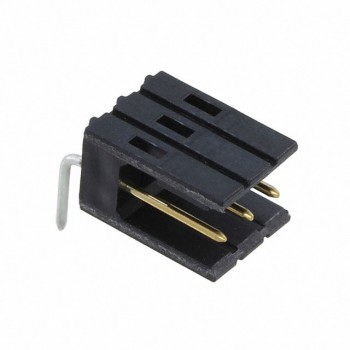

CONN HEADER R/A 3POS 2.54MM

826468-3 Datasheet
  • 1: $1.30000
  • 10: $1.14099
  • 100: $0.98467

3522-08-0101-99

CONN HEADER SMD 8POS 2.54MM

  • 1: $1.30000
  • 10: $1.14518
  • 100: $0.98800

0039306107

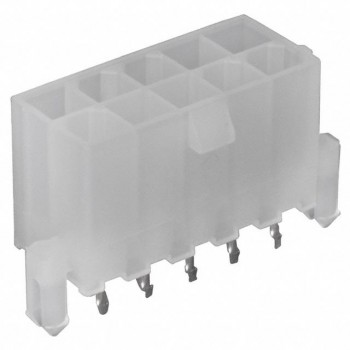

CONN HEADER VERT 10POS 4.2MM
