- Lifecycle status Active
- RoHS RoHS Compliant

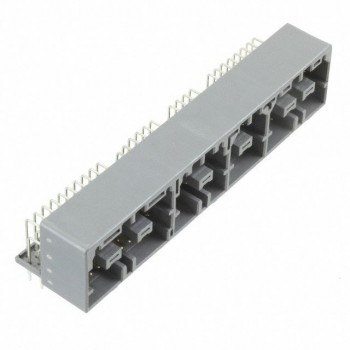

- DescriptionCONN HEADER R/A 60POS 3MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 525
Can ship immediately
Pricing:
- 1$20.02
- 16$18.07043
- 32$17.31318
- 56$16.231
- 104$15.68993
- 256$14.82431
- 504$14.39149
Quote It
Technical Details
- Series:Superseal
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Male Pin
- Pitch - Mating:0.118" (3.00mm)
- Number of Positions:60
- Number of Rows:4
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.157" (4.00mm)
- Overall Contact Length:-
- Insulation Height:1.079" (27.40mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyester
- Features:Mounting Flange, Sealed
- Operating Temperature:-40°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:250V
