0532541170

Woodhead - Molex
In Stock: 3,205

Can ship immediately

Pricing:
  • 1$0.49
  • 10$0.46124
  • 100$0.35333
  • 800$0.27649
  • 1,600$0.24577
  • 5,600$0.22273
  • 10,400$0.20737

Quote It

Technical Details

  • Series:Micro-Latch 53254
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:11
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 3 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Kinked Pin, Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.130" (3.30mm)



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.165" (4.20mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:-
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


5-1775443-6

CONN HEADER SMD 6POS 1.5MM

5-1775443-6 Datasheet
  • 1: $0.84000
  • 800: $0.52859
  • 1600: $0.46082

3-647609-2

CONN HEADER VERT 2POS 2.54MM

3-647609-2 Datasheet
  • 1: $0.50000
  • 10: $0.47069
  • 100: $0.36750

S9B-ZR-3.4(LF)(SN)

CONN HEADER R/A 9POS 1.5MM

  • 1: $0.50000

1969730-8

CONN HEADER VERT 8POS 2.5MM

1969730-8 Datasheet
  • 1: $0.51000
  • 10: $0.48352
  • 100: $0.37779

1586076-1

CONN HEADER VERT 2POS 6.35MM

1586076-1 Datasheet
  • 1: $0.51000
  • 10: $0.48167
  • 100: $0.37655

4282-1-0200-06-SP

CONN HEADER R/A 6POS DUAL 94V-0

  • 1: $0.52000

440055-7

CONN HEADER R/A 7POS 2MM

440055-7 Datasheet
  • 1: $0.51000
  • 10: $0.47430
  • 100: $0.36332

0878320614

CONN HEADER SMD 6POS 2MM

0878320614 Datasheet
  • 1: $0.75000
  • 500: $0.46368
  • 1000: $0.41216

3-1123723-8

CONN HEADER VERT 8POS 3.96MM

3-1123723-8 Datasheet
  • 1: $0.53000
  • 10: $0.50138
  • 100: $0.38436

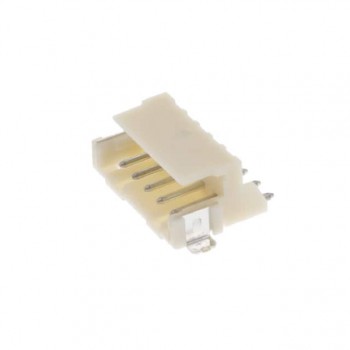

1-292173-5
