In Stock: 20,929

Can ship immediately

Pricing:
  • 1$0.64
  • 10$0.60084
  • 25$0.54486
  • 50$0.4887
  • 175$0.46981
  • 350$0.43223
  • 525$0.41344
  • 1,050$0.34764
  • 2,625$0.31946

Quote It

Technical Details

  • Series:Grace Inertia, GIC
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.130" (3.30mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.205" (5.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.575" (14.60mm)
  • Insulation Height:0.561" (14.25mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
  • Features:Board Guide
  • Operating Temperature:-30°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


1-1735446-6

CONN HEADER VERT 16POS 2MM

1-1735446-6 Datasheet
  • 1: $0.63000
  • 10: $0.59123
  • 100: $0.46194

1-1318301-3

CONN HEADER VERT 5POS 3.96MM

1-1318301-3 Datasheet
  • 1: $0.63000
  • 24: $0.59837
  • 120: $0.41906

1-2132415-1

CONN HEADER VERT 11POS 2.5MM

1-2132415-1 Datasheet
  • 1: $0.64000
  • 10: $0.59927
  • 100: $0.46788

3210-06-002-12-00

CONN HEADER R/A 6POS 1.27MM

3210-06-002-12-00 Datasheet
  • 1: $0.65000
  • 2700: $0.65000

826947-5

CONN HEADER R/A 5POS 2.54MM

826947-5 Datasheet
  • 1: $0.64000
  • 10: $0.59733
  • 100: $0.45824

3-647161-1

CONN HEADER R/A 5POS 2.54MM

3-647161-1 Datasheet
  • 1: $0.65000
  • 10: $0.60568
  • 100: $0.47381

1718130005

CONN HEADER VERT 5POS 3.96MM

1718130005 Datasheet
  • 1: $0.65000
  • 10: $0.60900
  • 100: $0.46690

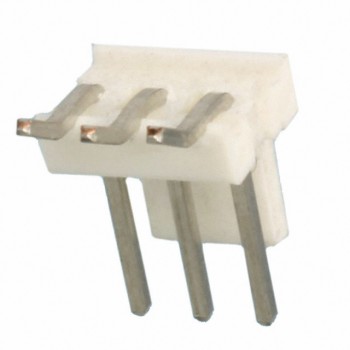

644877-3

CONN HEADER R/A 3POS 2.54MM

644877-3 Datasheet
  • 1: $0.66000
  • 10: $0.62323
  • 100: $0.48680

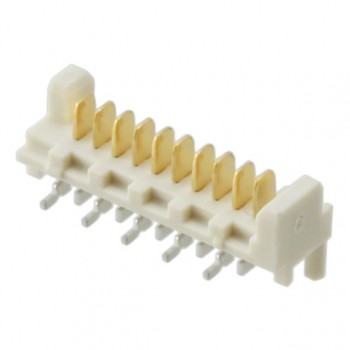

0908143910
