In Stock: 8,176

Can ship immediately

Pricing:
  • 1$0.64
  • 10$0.59927
  • 100$0.46788
  • 500$0.41177
  • 1,000$0.34626
  • 5,000$0.30883
  • 10,000$0.29011

Quote It

Technical Details

  • Series:Economy Power 2.5
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:11
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:0.134" (3.40mm)
  • Overall Contact Length:-
  • Insulation Height:0.346" (8.80mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:80.0µin (2.03µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):4.2A
  • Voltage Rating:250VAC

Related Products


3210-06-002-12-00

CONN HEADER R/A 6POS 1.27MM

3210-06-002-12-00 Datasheet
  • 1: $0.65000
  • 2700: $0.65000

826947-5

CONN HEADER R/A 5POS 2.54MM

826947-5 Datasheet
  • 1: $0.64000
  • 10: $0.59733
  • 100: $0.45824

3-647161-1

CONN HEADER R/A 5POS 2.54MM

3-647161-1 Datasheet
  • 1: $0.65000
  • 10: $0.60568
  • 100: $0.47381

1718130005

CONN HEADER VERT 5POS 3.96MM

1718130005 Datasheet
  • 1: $0.65000
  • 10: $0.60900
  • 100: $0.46690

644877-3

CONN HEADER R/A 3POS 2.54MM

644877-3 Datasheet
  • 1: $0.66000
  • 10: $0.62323
  • 100: $0.48680

0908143910

CONN HEADER SMD 10POS 1.27MM

0908143910 Datasheet
  • 1: $0.93000
  • 600: $0.66240
  • 1200: $0.58880

53025-14-0100-01

WIRE-TO BOARD WAFER, 2.5MM, 14 C

  • 1: $0.67000

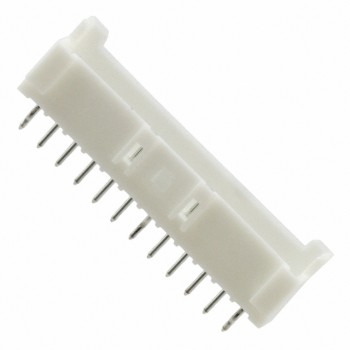

1-2132415-2

CONN HEADER VERT 12POS 2.5MM

1-2132415-2 Datasheet
  • 1: $0.67000
  • 10: $0.63231
  • 100: $0.48481

1041300510

CONN HEADER SMD 5POS 1.25MM

1041300510 Datasheet
  • 1: $1.31000
  • 1500: $0.67725
  • 3000: $0.65468

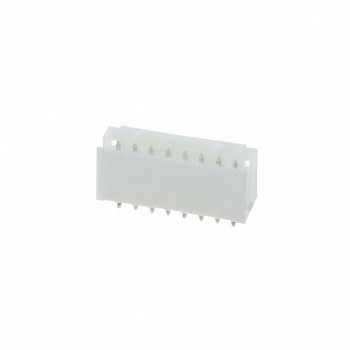

292251-8
