0908143912

Woodhead - Molex
In Stock: 4,044

Can ship immediately

Pricing:
  • 1$1.13
  • 600$0.69912
  • 1,200$0.62144
  • 1,800$0.5826
  • 3,000$0.56318
  • 6,000$0.54376
  • 15,000$0.50492

Quote It

Technical Details

  • Series:Picoflex PF-50 90814
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Blade
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:12
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.085" (2.15mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.161" (4.10mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Palladium-Nickel
  • Contact Finish Thickness - Mating:24.0µin (0.61µm)
  • Contact Finish - Post:Tin
  • Contact Material:Cartridge Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):1.2A
  • Voltage Rating:250V

Related Products


1-292206-3

CONN HEADER R/A 13POS 1.5MM

1-292206-3 Datasheet
  • 1: $0.78000
  • 10: $0.69322
  • 100: $0.60518

3-292207-5

CONN HEADER VERT 15POS 1.5MM

3-292207-5 Datasheet
  • 1: $0.79000
  • 10: $0.73831
  • 25: $0.66945

5-103765-3

CONN HEADER R/A 3POS 2.54MM

5-103765-3 Datasheet
  • 1: $0.78000
  • 10: $0.72735
  • 100: $0.55789

53025-18-0100-01

WIRE-TO BOARD WAFER, 2.5MM, 18 C

  • 1: $0.78000

0878320824

CONN HEADER SMD 8POS 2MM

0878320824 Datasheet
  • 1: $0.78000
  • 10: $0.72800
  • 100: $0.55820

G881A06102T3EU

CONN HEADER VERT 6POS 3MM

G881A06102T3EU Datasheet
  • 1: $0.79000
  • 10: $0.69783
  • 465: $0.54692

G881A04001TEU

CONN HEADER R/A 4POS 3MM

G881A04001TEU Datasheet
  • 1: $0.79000
  • 10: $0.69783
  • 100: $0.60162

1586038-8

CONN HEADER VERT 8POS 4.2MM

1586038-8 Datasheet
  • 1: $0.78000
  • 10: $0.69260
  • 315: $0.55395

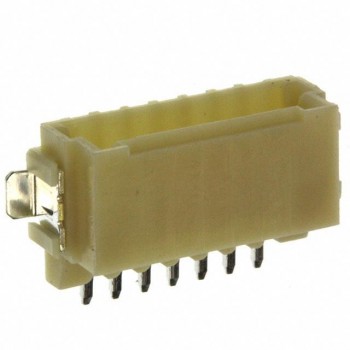

292227-7

CONN HEADER SMD R/A 7POS 1.5MM

292227-7 Datasheet
  • 1: $1.24000
  • 700: $0.76021
  • 1400: $0.67574

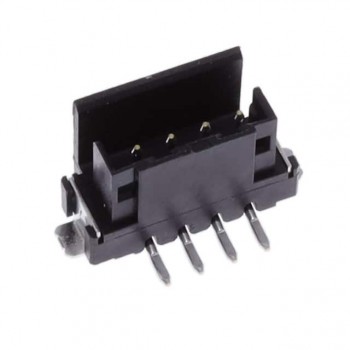

2-292174-4
