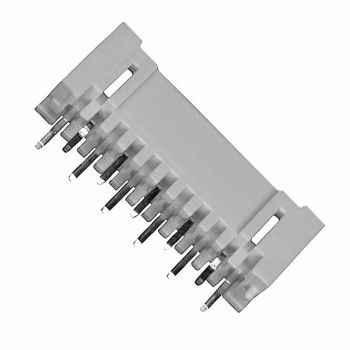

3-292207-5
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 15POS 1.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 3-292207-5 Datasheet
-
ECAD Model
- Share
In Stock: 9,902
Can ship immediately
Pricing:
- 1$0.79
- 10$0.73831
- 25$0.66945
- 50$0.6004
- 100$0.57719
- 250$0.53103
- 600$0.50796
- 1,200$0.42715
- 3,000$0.3925
Quote It
Technical Details
- Series:Mini CT
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.059" (1.50mm)
- Number of Positions:15
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Kinked Pin, Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.094" (2.40mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:0.307" (7.80mm)
- Insulation Height:0.272" (6.91mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:39.4µin (1.00µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon, Glass Filled
- Features:Board Guide
- Operating Temperature:-30°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:50VAC
