0535170610

Woodhead - Molex
In Stock: 6,313

Can ship immediately

Pricing:
  • 1$1.1
  • 10$0.96275
  • 100$0.83106
  • 600$0.67991
  • 1,200$0.60437
  • 5,400$0.52883
  • 10,200$0.50239

Quote It

Technical Details

  • Series:Mini-Lock 53517
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:6
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:0.610" (15.50mm)
  • Insulation Height:0.689" (17.50mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Guide, Glow Wire Compliant
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


1-2232511-5

CONN HEADER VERT 5POS 5MM

1-2232511-5 Datasheet
  • 1: $1.09000
  • 10: $0.96200
  • 100: $0.82990

0908140710

CONN HEADER SMD 10POS 1.27MM

0908140710 Datasheet
  • 1: $1.10000
  • 10: $0.96900
  • 25: $0.91200

1376386-1

CONN HEADER VERT 4POS 5MM

1376386-1 Datasheet
  • 1: $1.10000
  • 10: $0.96800
  • 25: $0.91101

917896-1

CONN HEADER VERT 4POS 2.5MM

917896-1 Datasheet
  • 1: $1.56000
  • 450: $1.17467
  • 900: $1.06281

1719720004

CONN HEADER VERT 4POS 2.54MM

1719720004 Datasheet
  • 1: $1.11000
  • 30: $0.91600
  • 120: $0.83950

103639-2

CONN HEADER VERT 3POS 2.54MM

103639-2 Datasheet
  • 1: $1.11000
  • 54: $0.88389
  • 108: $0.84554

1718130009

CONN HEADER VERT 9POS 3.96MM

1718130009 Datasheet
  • 1: $1.12000
  • 10: $0.98900
  • 100: $0.85320

1-292161-5

CONN HEADER VERT 15POS 2MM

1-292161-5 Datasheet
  • 1: $1.12000
  • 10: $0.99213
  • 100: $0.86576

2-1969570-0

CONN HEADER VERT 20POS 2.5MM

2-1969570-0 Datasheet
  • 1: $1.13000
  • 10: $0.99005
  • 100: $0.85382

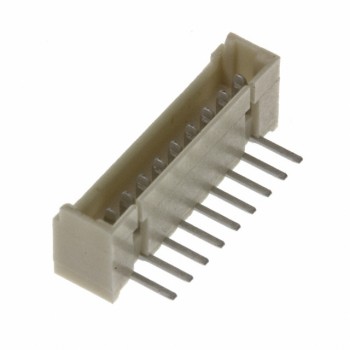

1734829-9
