In Stock: 3,171

Can ship immediately

Pricing:
  • 1$1.1
  • 10$0.968
  • 25$0.91101
  • 50$0.87309
  • 100$0.83506
  • 250$0.75915
  • 500$0.68324
  • 1,000$0.60732
  • 2,500$0.55038

Quote It

Technical Details

  • Series:Power Key
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Tab
  • Pitch - Mating:0.197" (5.00mm)
  • Number of Positions:4
  • Number of Rows:2
  • Row Spacing - Mating:0.244" (6.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.555" (14.10mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
  • Features:Board Guide, Glow Wire Compliant
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:300VAC

Related Products


917896-1

CONN HEADER VERT 4POS 2.5MM

917896-1 Datasheet
  • 1: $1.56000
  • 450: $1.17467
  • 900: $1.06281

1719720004

CONN HEADER VERT 4POS 2.54MM

1719720004 Datasheet
  • 1: $1.11000
  • 30: $0.91600
  • 120: $0.83950

103639-2

CONN HEADER VERT 3POS 2.54MM

103639-2 Datasheet
  • 1: $1.11000
  • 54: $0.88389
  • 108: $0.84554

1718130009

CONN HEADER VERT 9POS 3.96MM

1718130009 Datasheet
  • 1: $1.12000
  • 10: $0.98900
  • 100: $0.85320

1-292161-5

CONN HEADER VERT 15POS 2MM

1-292161-5 Datasheet
  • 1: $1.12000
  • 10: $0.99213
  • 100: $0.86576

2-1969570-0

CONN HEADER VERT 20POS 2.5MM

2-1969570-0 Datasheet
  • 1: $1.13000
  • 10: $0.99005
  • 100: $0.85382

1734829-9

CONN HEADER R/A 9POS 1.25MM

1734829-9 Datasheet
  • 1: $1.13000
  • 47: $0.93435
  • 141: $0.85656

643265-7

CONN HEADER VERT 9POS 2.54MM

643265-7 Datasheet
  • 1: $1.13000
  • 10: $0.99832
  • 100: $0.87094

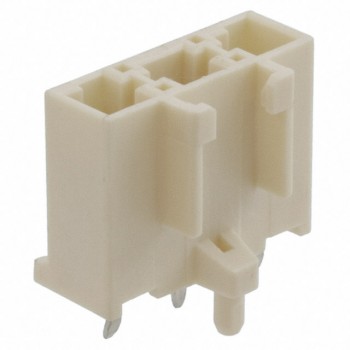

179846-1
