In Stock: 1,416

Can ship immediately

Pricing:
  • 1$1.2
  • 10$1.05828
  • 100$0.91283
  • 500$0.74686
  • 1,000$0.66387
  • 5,000$0.58089
  • 10,000$0.55184

Quote It

Technical Details

  • Series:CT
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:13
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.165" (4.20mm)



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:0.358" (9.09mm)
  • Insulation Height:0.268" (6.80mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:125VAC

Related Products


292174-9

CONN HEADER SMD 9POS 2MM

292174-9 Datasheet
  • 1: $1.81000
  • 700: $1.13904
  • 1400: $0.97632

3221-26-0300-00-TR

CONN HEADER SMD 26POS 1.27MM

  • 1: $1.86000

1734260-9

CONN HEADER SMD 9POS 1.25MM

1734260-9 Datasheet
  • 1: $2.27000
  • 1000: $1.17617
  • 2000: $1.13696

0901201086

CONN HEADER VERT 6POS 2.54MM

0901201086 Datasheet
  • 1: $1.23000
  • 10: $1.08079
  • 100: $0.93198

2-292141-4

CONN HEADER VERT 24POS 2MM

2-292141-4 Datasheet
  • 1: $1.23000
  • 10: $1.09617
  • 150: $0.95638

1-292132-5

CONN HEADER VERT 15POS 2MM

1-292132-5 Datasheet
  • 1: $1.23000
  • 10: $1.09344
  • 100: $0.95417

0466220201

CONN HEADER SMD R/A 2POS 3MM

0466220201 Datasheet
  • 1: $1.75000
  • 230: $1.36457
  • 460: $1.23463

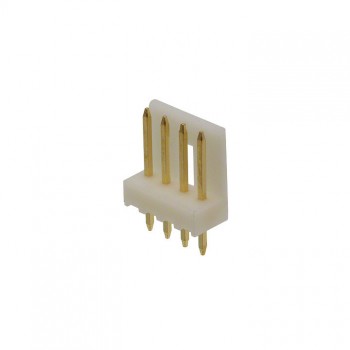

173081-4

CONN HEADER VERT 4POS 2.5MM

173081-4 Datasheet
  • 1: $1.24000
  • 10: $1.08863
  • 100: $0.93889

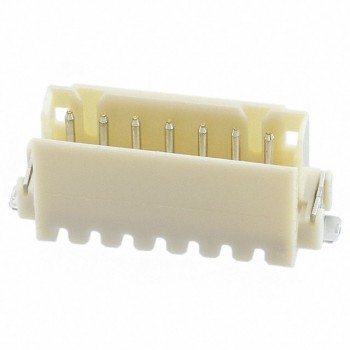

292175-7

CONN HEADER SMD 7POS 2MM

292175-7 Datasheet
  • 1: $2.16000
  • 700: $1.33533
  • 1400: $1.16413

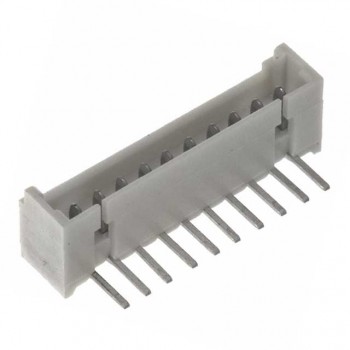

1-1734829-0
