In Stock: 4,636

Can ship immediately

Pricing:
  • 1$1.82

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.145" (3.70mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.238" (6.05mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


69168-114

CONN HEADER VERT 14POS 2.54MM

69168-114 Datasheet
  • 1: $1.82000
  • 3200: $0.87318

20021511-00020T4LF

CONN HEADER VERT 20POS 1.27MM

20021511-00020T4LF Datasheet
  • 1: $1.82000
  • 1512: $1.03108

2842156-4

8P,2MM,BRK HDR,DRRT,2.8,0.76AU,T

  • 1: $1.83000

2842155-6

12P,2MM,BRK HDR,DRRT,2.8,0.38AU,

  • 1: $1.83000

1511173020

CONN HEADER VERT 20POS 2MM

  • 1: $1.83000

0537802070

CONN HEADER SMD R/A 20POS 1.25MM

0537802070 Datasheet
  • 1: $3.27000
  • 1500: $1.83008
  • 3000: $1.76472

0015916102

CONN HEADER SMD 10POS 2.54MM

0015916102 Datasheet
  • 1: $2.43000
  • 330: $1.86200
  • 660: $1.71500

2842139-8

16P,2MM,BRK HDR,DRVT,2.8,0.38AU,

  • 1: $1.87000

1510133218

CONN HEADER VERT 18POS 2MM

  • 1: $1.87000

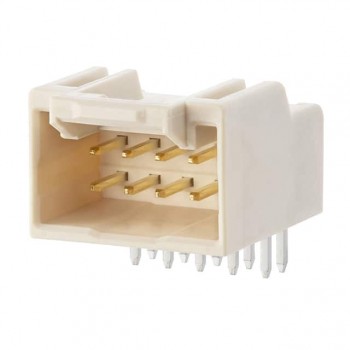

2086591440
