0010181031

Woodhead - Molex
In Stock: 386

Can ship immediately

Pricing:
  • 1$1.39
  • 10$1.25906
  • 100$1.07876
  • 500$0.89897
  • 1,000$0.77054
  • 5,000$0.68322
  • 10,000$0.6678

Quote It

Technical Details

  • Series:3099
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.198" (5.03mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:2
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Lock
  • Contact Length - Mating:-



  • Contact Length - Post:0.170" (4.32mm)
  • Overall Contact Length:-
  • Insulation Height:0.421" (10.70mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:200.0µin (5.08µm)
  • Contact Finish - Post:Tin
  • Contact Material:Cartridge Brass
  • Insulation Material:Polyester
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


103906-3

CONN HEADER R/A 4POS 2.54MM

103906-3 Datasheet
  • 1: $1.40000
  • 42: $1.16230
  • 126: $1.06532

3010-20-001-12-00

CONN HEADER VERT 20POS 2.54MM

3010-20-001-12-00 Datasheet
  • 1: $1.42000
  • 10: $1.29220
  • 100: $1.10760

0346900081

CONN HEADER VERT 8POS 2.54MM

0346900081 Datasheet
  • 1: $1.42000
  • 10: $1.29220
  • 100: $1.10801

M80-8520342

CONN HEADER VERT 3POS 2MM

M80-8520342 Datasheet
  • 1: $1.40000
  • 26: $1.15609
  • 104: $1.05964

69190-236HLF

CONN HEADER VERT 36POS 2.54MM

69190-236HLF Datasheet
  • 1: $1.40000
  • 10: $1.23885
  • 100: $1.08153

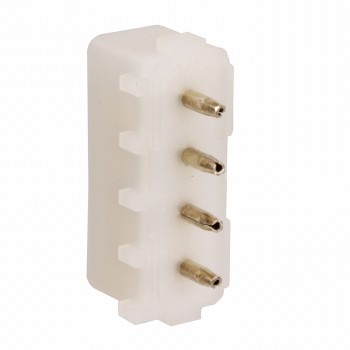

350211-3

CONN HEADER VERT 4POS 5.08MM

350211-3 Datasheet
  • 1: $1.40000
  • 10: $1.22800
  • 100: $1.05940

M50-3632042

CONN HEADER SMD 20POS 1.27MM

M50-3632042 Datasheet
  • 1: $1.40000
  • 22: $1.22786
  • 110: $1.05921

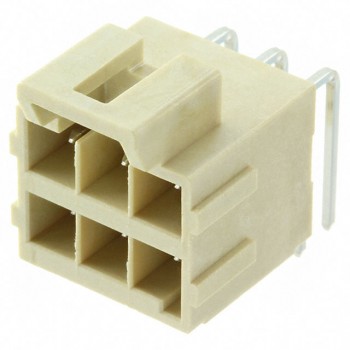

1723162106

CONN HEADER R/A 6POS 3.5MM

1723162106 Datasheet
  • 1: $1.40000
  • 10: $1.23529
  • 100: $1.06575

66202021122

CONN HEADER VERT 20POS 3MM

  • 1: $1.40000
  • 10: $1.37200
  • 100: $1.26600

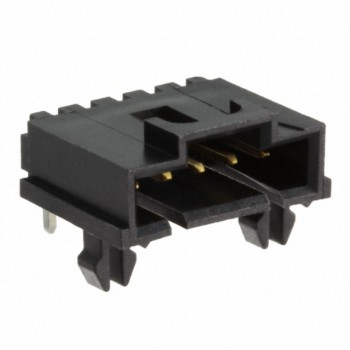

0705510004
