M80-8520342

Harwin
In Stock: 556

Can ship immediately

Pricing:
  • 1$1.4
  • 26$1.15609
  • 104$1.05964
  • 520$0.86697
  • 1,014$0.77063
  • 5,018$0.6743
  • 10,010$0.64058

Quote It

Technical Details

  • Series:Datamate L-Tek
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.219" (5.56mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.2A
  • Voltage Rating:800V

Related Products


69190-236HLF

CONN HEADER VERT 36POS 2.54MM

69190-236HLF Datasheet
  • 1: $1.40000
  • 10: $1.23885
  • 100: $1.08153

350211-3

CONN HEADER VERT 4POS 5.08MM

350211-3 Datasheet
  • 1: $1.40000
  • 10: $1.22800
  • 100: $1.05940

M50-3632042

CONN HEADER SMD 20POS 1.27MM

M50-3632042 Datasheet
  • 1: $1.40000
  • 22: $1.22786
  • 110: $1.05921

1723162106

CONN HEADER R/A 6POS 3.5MM

1723162106 Datasheet
  • 1: $1.40000
  • 10: $1.23529
  • 100: $1.06575

66202021122

CONN HEADER VERT 20POS 3MM

  • 1: $1.40000
  • 10: $1.37200
  • 100: $1.26600

0705510004

CONN HEADER R/A 5POS 2.54MM

0705510004 Datasheet
  • 1: $1.40000
  • 10: $1.27400
  • 100: $1.09200

DF1B-20DP-2.5DSA(01)

CONN HEADER VERT 20POS 2.5MM

DF1B-20DP-2.5DSA(01) Datasheet
  • 1: $1.40000
  • 10: $1.23239
  • 100: $1.06282

XG8T-2031

CONN HEADER VERT 20POS 2.54MM

XG8T-2031 Datasheet
  • 1: $1.41000
  • 10: $1.23805
  • 100: $1.06839

AWHW 40A-0202-T

CONN HEADER R/A 40POS 2.54MM

AWHW 40A-0202-T Datasheet
  • 1: $1.43000
  • 80: $1.16910
  • 160: $1.11599

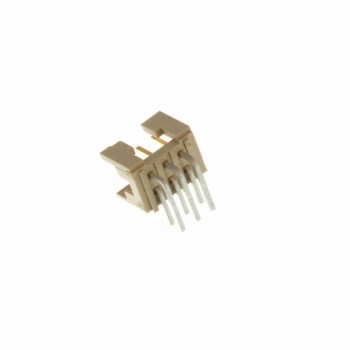

98464-G61-06ULF
