0705510004

Woodhead - Molex
In Stock: 190

Can ship immediately

Pricing:
  • 1$1.4
  • 10$1.274
  • 100$1.092
  • 500$0.91
  • 1,000$0.78
  • 5,000$0.6916
  • 10,000$0.676

Quote It

Technical Details

  • Series:SL 70551
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.215" (5.45mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:150.0µin (3.81µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyester, Glass Filled
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:250V

Related Products


DF1B-20DP-2.5DSA(01)

CONN HEADER VERT 20POS 2.5MM

DF1B-20DP-2.5DSA(01) Datasheet
  • 1: $1.40000
  • 10: $1.23239
  • 100: $1.06282

XG8T-2031

CONN HEADER VERT 20POS 2.54MM

XG8T-2031 Datasheet
  • 1: $1.41000
  • 10: $1.23805
  • 100: $1.06839

AWHW 40A-0202-T

CONN HEADER R/A 40POS 2.54MM

AWHW 40A-0202-T Datasheet
  • 1: $1.43000
  • 80: $1.16910
  • 160: $1.11599

98464-G61-06ULF

CONN HEADER R/A 6POS 2MM

98464-G61-06ULF Datasheet
  • 1: $1.41000
  • 10: $1.24281
  • 100: $1.07261

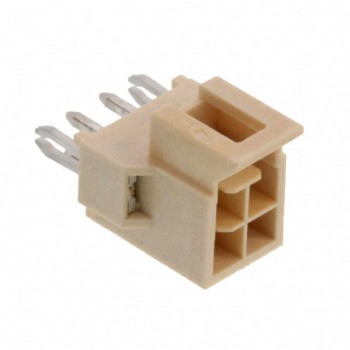

1053122204

CONN HEADER VERT 4POS 2.5MM

1053122204 Datasheet
  • 1: $1.42000
  • 10: $1.28807
  • 210: $1.10396

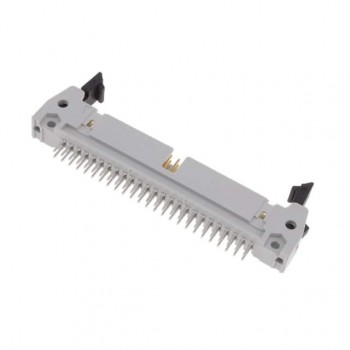

86130502114345E1LF

CONN HEADER VERT 50POS 2.54MM

86130502114345E1LF Datasheet
  • 1: $1.43000
  • 42: $1.18729
  • 126: $1.08831

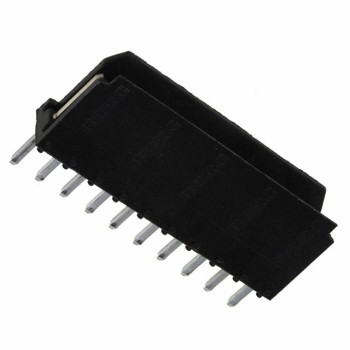

76384-310LF

CONN HEADER VERT 10POS 2.54MM

76384-310LF Datasheet
  • 1: $1.41000
  • 24: $1.23753
  • 120: $1.06757

64900411122

CONN HEADER VERT 4POS 4.2MM

  • 1: $1.41000
  • 10: $1.38600
  • 50: $1.27900

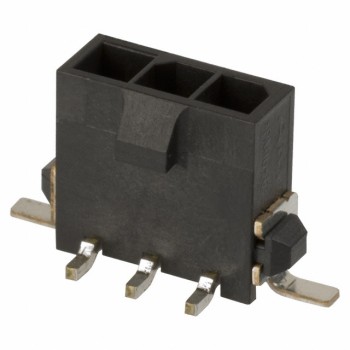

2-1445096-3
