10075025-G01-14ULF
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 14POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 10075025-G01-14ULF Datasheet
-
ECAD Model
- Share
In Stock: 804
Can ship immediately
Pricing:
- 1$1.68
- 35$1.43195
- 105$1.30746
- 525$1.08951
- 1,015$0.93386
- 5,005$0.82802
- 10,010$0.80935
Quote It
Technical Details
- Series:Minitek® 2.00mm
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:14
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.157" (4.00mm)
- Contact Length - Post:0.079" (2.00mm)
- Overall Contact Length:-
- Insulation Height:0.220" (5.60mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold, GXT™
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic
- Features:Keying Slot
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):2A (AC/DC)
- Voltage Rating:200V (AC/DC)
Related Products

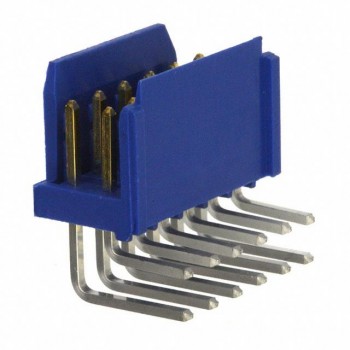

CONN HEADER R/A 32POS 2.54MM
