0346900201

Woodhead - Molex
In Stock: 1,048

Can ship immediately

Pricing:
  • 1$2.64
  • 10$2.39313
  • 100$2.05084
  • 560$1.70906
  • 1,120$1.4649
  • 5,040$1.29888

Quote It

Technical Details

  • Series:Stac64 34690
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.117" (2.97mm)
  • Overall Contact Length:-
  • Insulation Height:0.886" (22.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Cartridge Brass
  • Insulation Material:Syndiotactic Polystyrene (SPS), Glass Filled
  • Features:Board Guide
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Gray
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0757571481

CONN HEADER VERT 16POS 3.5MM

0757571481 Datasheet
  • 1: $2.62000
  • 10: $2.51783
  • 266: $1.83613

770743-1

CONN HEADER VERT 10POS 4.14MM

770743-1 Datasheet
  • 1: $2.62000
  • 10: $2.37477
  • 100: $2.03532

3010-40-002-12-00

CONN HEADER R/A 40POS 2.54MM

3010-40-002-12-00 Datasheet
  • 1: $2.65000
  • 10: $2.40422
  • 432: $1.86411

0346900200

CONN HEADER VERT 20POS 2.54MM

0346900200 Datasheet
  • 1: $2.64000
  • 10: $2.39313
  • 100: $2.05084

A1-20PA-2.54DSA(71)

CONN HEADER VERT 20POS 2.54MM

A1-20PA-2.54DSA(71) Datasheet
  • 1: $2.65000
  • 10: $2.40851
  • 25: $2.26105

0022232221

CONN HEADER VERT 22POS 2.54MM

0022232221 Datasheet
  • 1: $2.63000
  • 10: $2.38288
  • 100: $2.04247

0436501001

CONN HEADER R/A 10POS 3MM

  • 1: $2.65000

09185206903

CONN HEADER R/A 20POS 2.54MM

09185206903 Datasheet
  • 1: $2.63000
  • 10: $2.52000
  • 25: $2.31000

AWHW 16A-0102-T

CONN HEADER R/A 16POS 2.54MM

  • 1: $2.65000

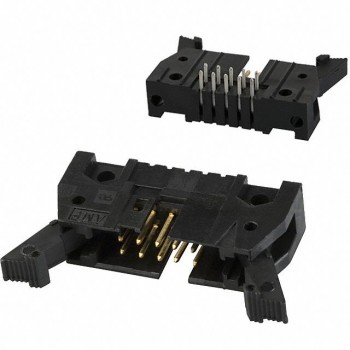

5499913-1
