In Stock: 147

Can ship immediately

Pricing:
  • 1$17.96
  • 10$16.67484
  • 25$14.96404
  • 50$14.5366
  • 100$12.82641
  • 250$11.97131
  • 500$11.71479

Quote It

Technical Details

  • Series:ModICE® MX
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.138" (3.50mm)
  • Number of Positions:32 (20 + 12)
  • Number of Rows:2
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Panel Mount, Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Lock
  • Contact Length - Mating:-



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:1.610" (40.90mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polymer, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 85°C
  • Ingress Protection:IP67, IP69K
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):10A
  • Voltage Rating:-

Related Products


6437288-6

CONN HEADER VERT 26POS 3MM

6437288-6 Datasheet
  • 1: $18.22000
  • 17: $16.56650
  • 102: $14.08124

6473418-1

CONN HEADER VERT 26POS 3MM

  • 1: $18.22000
  • 17: $16.55909
  • 102: $14.07520

M80-5400642

CONN HEADER R/A 6POS 2MM

M80-5400642 Datasheet
  • 1: $18.31000
  • 16: $17.00262
  • 112: $13.07885

M80-5400842

CONN HEADER R/A 8POS 2MM

M80-5400842 Datasheet
  • 1: $18.54000
  • 14: $17.21798
  • 112: $13.24475

DTM13-12PA-R008

CONN HEADER R/A 12POS

DTM13-12PA-R008 Datasheet
  • 1: $18.66000
  • 10: $17.33102
  • 25: $15.55306

M80-5401042

CONN HEADER R/A 10POS 2MM

M80-5401042 Datasheet
  • 1: $18.77000
  • 13: $17.42567
  • 104: $13.40462

M80-5401005

CONN HEADER R/A 10POS 2MM

M80-5401005 Datasheet
  • 1: $19.66000
  • 13: $17.74393
  • 104: $15.40674

M83-LMT1M2N60-0000-000

CONN HEADER VERT 60POS 2MM

M83-LMT1M2N60-0000-000 Datasheet
  • 1: $19.85000
  • 12: $17.92014
  • 36: $17.16934

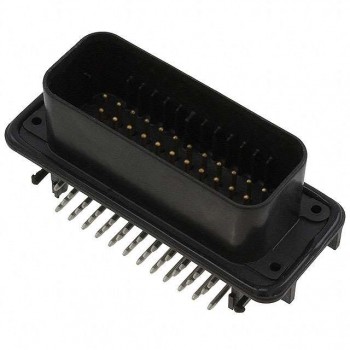

1-776163-1

CONN HEADER R/A 35POS 4MM

1-776163-1 Datasheet
  • 1: $20.06000
  • 10: $18.23129
  • 100: $15.49660

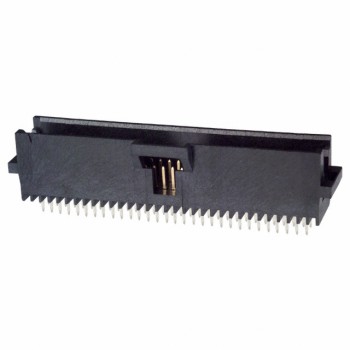

5-104068-6
