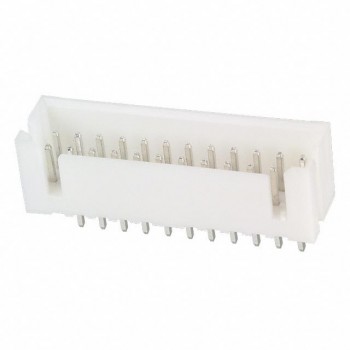

DF1BZ-24DP-2.5DSA
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 24POS 2.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet DF1BZ-24DP-2.5DSA Datasheet
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$1.04
- 10$0.91051
- 100$0.7851
- 500$0.64235
- 1,000$0.57098
Quote It
Technical Details
- Series:DF1B
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.098" (2.50mm)
- Number of Positions:24
- Number of Rows:2
- Row Spacing - Mating:0.098" (2.50mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.177" (4.50mm)
- Contact Length - Post:0.142" (3.60mm)
- Overall Contact Length:0.417" (10.60mm)
- Insulation Height:0.374" (9.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Keying Slot
- Operating Temperature:-35°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:White
- Current Rating (Amps):-
- Voltage Rating:250V
