0903250024

Woodhead - Molex
In Stock: 176

Can ship immediately

Pricing:
  • 1$1.04
  • 10$0.912
  • 25$0.8584
  • 50$0.8228
  • 100$0.7869
  • 250$0.7154
  • 500$0.64386
  • 1,000$0.57232
  • 2,500$0.51866

Quote It

Technical Details

  • Series:Picoflex PF-50 90325
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Blade
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:24
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.252" (6.40mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:118.1µin (3.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1.2A
  • Voltage Rating:250V

Related Products


0908160006

CONN HEADER SMD 6POS 1.27MM

0908160006 Datasheet
  • 1: $1.04000
  • 10: $0.91100
  • 25: $0.85720

DF1EG-9P-2.5DSA(35)

CONN HEADER VERT 9POS 2.5MM

DF1EG-9P-2.5DSA(35) Datasheet
  • 1: $1.04000
  • 10: $0.91051
  • 100: $0.78510

XG8T-1431

CONN HEADER VERT 14POS 2.54MM

XG8T-1431 Datasheet
  • 1: $1.05000
  • 10: $0.92103
  • 100: $0.79503

M40-3011046

CONN HEADER SMD 10POS 1MM

M40-3011046 Datasheet
  • 1: $1.07000
  • 10: $0.93677
  • 100: $0.80775

A3-4PA-2SV(71)

CONN HEADER SMD 4POS 2MM

A3-4PA-2SV(71) Datasheet
  • 1: $1.07000
  • 10: $0.93706
  • 120: $0.80844

0705450005

CONN HEADER VERT 6POS 2.54MM

0705450005 Datasheet
  • 1: $1.07000
  • 3312: $0.48546

68000-126HLF

CONN HEADER VERT 26POS 2.54MM

68000-126HLF Datasheet
  • 1: $1.08000
  • 10: $0.94900
  • 100: $0.81840

1722991106

CONN HEADER VERT 6POS 3.5MM

1722991106 Datasheet
  • 1: $1.08000
  • 10: $0.94926
  • 100: $0.81909

BHR-40-HUA

CONN HEADER R/A 40POS 2.54MM

  • 1: $1.09000
  • 80: $0.86115
  • 160: $0.82375

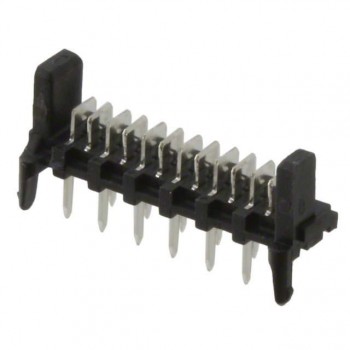

0903259012
