SMH100-LPPE-D27-ST-BK

Sullins Connector Solutions
In Stock: 157

Can ship immediately

Pricing:
  • 1$2.90493
  • 1,000$2.90493

Quote It

Technical Details

  • Series:SMH
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:54
  • Number of Rows:2
  • Row Spacing - Mating:0.039" (1.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.071" (1.80mm)



  • Contact Length - Post:0.098" (2.50mm)
  • Overall Contact Length:0.209" (5.30mm)
  • Insulation Height:0.039" (1.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


SMH150-LPPE-D27-ST-BK

CONN HEADER VERT 54POS 1MM

SMH150-LPPE-D27-ST-BK Datasheet
  • 1: $2.90493
  • 1000: $2.90493

3-87690-4

CONN HEADER VERT 6POS 2.54MM

3-87690-4 Datasheet
  • 1: $2.90500
  • 464: $2.66000

566-002-421-701

CONN HEADER VERT 2POS 2MM

566-002-421-701 Datasheet
  • 1: $2.90500
  • 250: $2.90500

141A10229X

CONN HEADER VERT 20POS 2.54MM

141A10229X Datasheet
  • 1: $2.90500
  • 300: $2.90500

141A10599X

CONN HEADER R/A 26POS 2.54MM

  • 1: $2.90500
  • 300: $2.90500

4-2842238-0

40P,2MM,SHRD HDR,DRVT,0.76AU,TB

  • 1: $2.90506

4-2842284-0

40P,2MM,SHRD HDR,DRVT,0.76AU,TB

  • 1: $2.90506

0702871221

CONN HEADER VERT 54POS 2.54MM

0702871221 Datasheet
  • 1: $2.90508
  • 1400: $2.90508

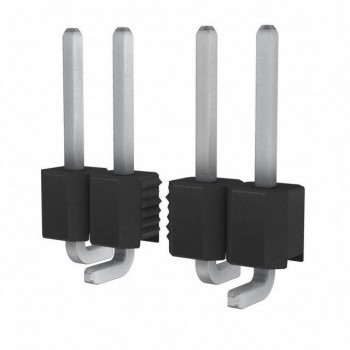

0878981626
