MC74LVXT4052DTRG
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionANALOG MULTIPLEXER/DEMULTIPLEXER
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
- Datasheet MC74LVXT4052DTRG Datasheet
-
ECAD Model
- Share
In Stock: 51,636
Can ship immediately
Pricing:
- 1$0.29
- 2,500$0.09544
- 5,000$0.08886
- 12,500$0.08557
- 25,000$0.08228
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Switch Circuit:SP4T
- Multiplexer/Demultiplexer Circuit:4:1
- Number of Circuits:2
- On-State Resistance (Max):26Ohm
- Channel-to-Channel Matching (ΔRon):10Ohm
- Voltage - Supply, Single (V+):2.5V ~ 6V
- Voltage - Supply, Dual (V±):±2.5V ~ 6V
- Switch Time (Ton, Toff) (Max):-
- -3db Bandwidth:80MHz
- Charge Injection:12pC
- Channel Capacitance (CS(off), CD(off)):10pF
- Current - Leakage (IS(off)) (Max):100nA
- Crosstalk:-
- Operating Temperature:-55°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-TSSOP
Related Products
SN74HC4852 DUAL 4-TO-1 CHANNEL A
- 1: $0.29000
- 10: $0.25631
- 25: $0.24070

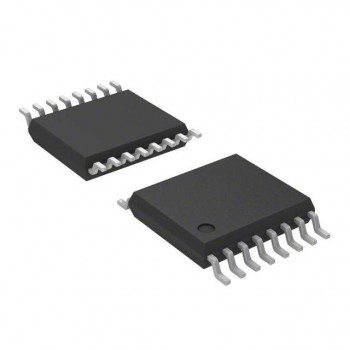

SN74HC4852-Q1 AUTOMOTIVE CATALOG
