IPA50R500CE
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 500V 7.6A TO220-FP
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet IPA50R500CE Datasheet
-
ECAD Model
- Share
In Stock: 1,010
Can ship immediately
Pricing:
- 1$0.36
Quote It
Technical Details
- Series:CoolMOS™
- Package:Bulk
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):500 V
- Current - Continuous Drain (Id) @ 25°C:7.6A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):13V
- Rds On (Max) @ Id, Vgs:500mOhm @ 2.3A, 13V
- Vgs(th) (Max) @ Id:3.5V @ 200µA
- Gate Charge (Qg) (Max) @ Vgs:18.7 nC @ 10 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:433 pF @ 100 V
- FET Feature:Super Junction
- Power Dissipation (Max):28W (Tc)
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Through Hole
- Supplier Device Package:PG-TO220-FP
- Package / Case:TO-220-3 Full Pack
Related Products
IPS80R1K4 - 800V COOLMOS N-CHANN
- 1: $0.36000
25A, 60V, 0.047 OHM, N-CHANNEL P
- 1: $0.37000

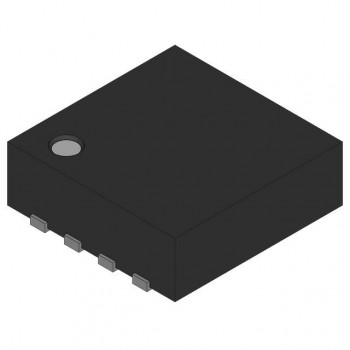

BSZ22DN20 - 12V-300V N-CHANNEL P
