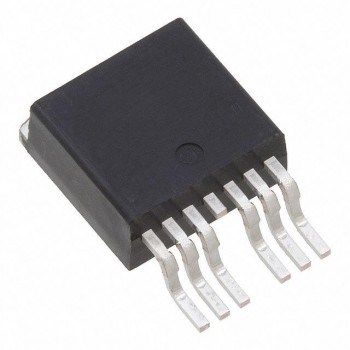

AUIRFS3004-7TRL

IR (Infineon Technologies)
In Stock: 162

Can ship immediately

Pricing:
  • 1$3.07291
  • 800$3.07291

Quote It

Technical Details

  • Series:HEXFET®
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):40 V
  • Current - Continuous Drain (Id) @ 25°C:240A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:1.25mOhm @ 195A, 10V
  • Vgs(th) (Max) @ Id:4V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:240 nC @ 10 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:9130 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):380W (Tc)
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:D2PAK (7-Lead)
  • Package / Case:TO-263-7, D²Pak (6 Leads + Tab)
