- Lifecycle status Active
- RoHS RoHS Compliant

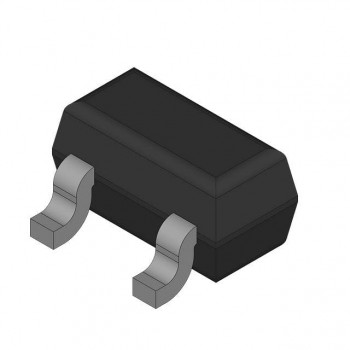

- DescriptionN-CH MOSFET 60V 0.34A SOT-23-3L
- CategoryTransistors - FETs, MOSFETs - Single
-
ECAD Model
- Share
In Stock: 189
Can ship immediately
Pricing:
- 1$0.29
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):60 V
- Current - Continuous Drain (Id) @ 25°C:340mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
- Rds On (Max) @ Id, Vgs:2.5Ohm @ 300mA, 10V
- Vgs(th) (Max) @ Id:2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:1.6 nC @ 10 V
- Vgs (Max):±30V
- Input Capacitance (Ciss) (Max) @ Vds:27.5 pF @ 30 V
- FET Feature:-
- Power Dissipation (Max):350mW (Ta)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:SOT-23
- Package / Case:TO-236-3, SC-59, SOT-23-3
Related Products
P-CH MOSFET 20V 2A SOT-23-3L
- 1: $0.29000
P-CH MOSFET 16V 7A DFN2020-6L-C-
- 1: $0.47000
N-CH MOSFET 100V 3A SOT-23-3L
- 1: $0.47000
N-CH MOSFET 60V 3A SOT-23-3L
- 1: $0.47000
P-CH MOSFET 20V 5.6A SOT-23-3L
- 1: $0.47000
N-CH MOSFET 100V 2A SOT-23-3L
- 1: $0.47000
N-CH MOSFET 60V 3A SOT-23-3L
- 1: $0.47000

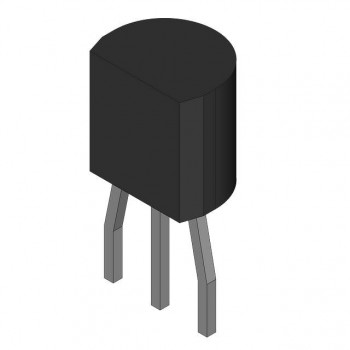

SMALL SIGNAL FIELD-EFFECT TRANSI
