In Stock: 14,452

Can ship immediately

Pricing:
  • 1$0.64
  • 10$0.59665
  • 110$0.4572
  • 550$0.39757
  • 1,100$0.32799
  • 5,060$0.28824
  • 10,010$0.26836

Quote It

Technical Details

  • Series:High Performance Interconnect (HPI)
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.049" (1.25mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:-
  • Contact Length - Mating:-



  • Contact Length - Post:0.067" (1.70mm)
  • Overall Contact Length:-
  • Insulation Height:0.185" (4.70mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:120.0µin (3.05µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA9T), Nylon 9T, Glass Filled
  • Features:-
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):1A
  • Voltage Rating:100VAC

Related Products


2-644803-3

CONN HEADER R/A 3POS 2.54MM

2-644803-3 Datasheet
  • 1: $0.64000
  • 10: $0.60357
  • 100: $0.47173

0532583006

CONN HEADER VERT 6POS 3.5MM

0532583006 Datasheet
  • 1: $0.64000
  • 10: $0.60295
  • 450: $0.42231

1-1123723-0

CONN HEADER VERT 10POS 3.96MM

1-1123723-0 Datasheet
  • 1: $0.64000
  • 10: $0.60047
  • 100: $0.46871

1718140004

CONN HEADER R/A 4POS 3.96MM

1718140004 Datasheet
  • 1: $0.64000
  • 10: $0.60275
  • 100: $0.46223

M20-9961245

CONN HEADER R/A 12POS 2.54MM

M20-9961245 Datasheet
  • 1: $0.64000
  • 10: $0.60480
  • 100: $0.46368

292227-3

CONN HEADER SMD R/A 3POS 1.5MM

292227-3 Datasheet
  • 1: $1.02000
  • 700: $0.69576
  • 1400: $0.62619

1-640455-4

CONN HEADER R/A 14POS 2.54MM

1-640455-4 Datasheet
  • 1: $0.65000
  • 10: $0.57331
  • 100: $0.50021

0010081042

CONN HEADER VERT 4POS 5.08MM

0010081042 Datasheet
  • 1: $0.65000
  • 10: $0.60700
  • 100: $0.46510

292207-9

CONN HEADER VERT 9POS 1.5MM

292207-9 Datasheet
  • 1: $0.65000
  • 10: $0.61455
  • 100: $0.48011

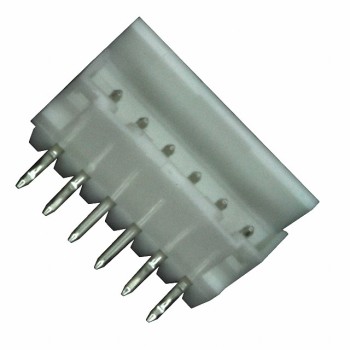

292250-6
