4282-1-0100-16-SP

CnC Tech
In Stock: 2,213

Can ship immediately

Pricing:
  • 1$1.08

Quote It

Technical Details

  • Series:-
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.157" (4.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.504" (12.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):9A
  • Voltage Rating:600VAC/DC

Related Products


4282-1-0200-14-SP

CONN HEADER R/A 14POS DUAL 94V-0

  • 1: $1.08000

0466220300

CONN HEADER SMD R/A 3POS 3MM

0466220300 Datasheet
  • 1: $1.53000
  • 230: $1.18774
  • 460: $1.07463

0559321410

CONN HEADER VERT 14POS 2MM

0559321410 Datasheet
  • 1: $1.09000
  • 10: $0.95577
  • 100: $0.82446

57102-F08-05ULF

CONN HEADER VERT 10POS 2MM

57102-F08-05ULF Datasheet
  • 1: $1.08000
  • 58: $0.85302
  • 116: $0.81596

0535170610

CONN HEADER VERT 6POS 2.5MM

0535170610 Datasheet
  • 1: $1.10000
  • 10: $0.96275
  • 100: $0.83106

1-2232511-5

CONN HEADER VERT 5POS 5MM

1-2232511-5 Datasheet
  • 1: $1.09000
  • 10: $0.96200
  • 100: $0.82990

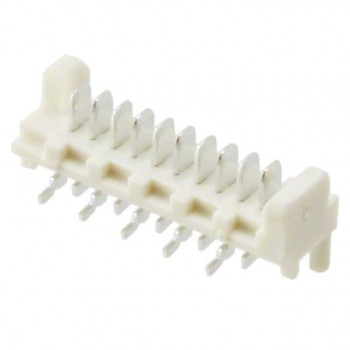

0908140710

CONN HEADER SMD 10POS 1.27MM

0908140710 Datasheet
  • 1: $1.10000
  • 10: $0.96900
  • 25: $0.91200

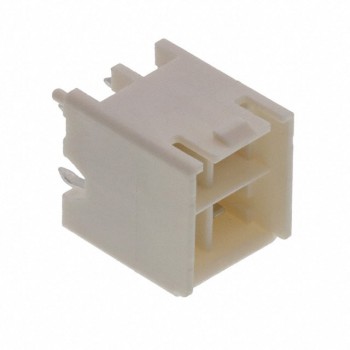

1376386-1

CONN HEADER VERT 4POS 5MM

1376386-1 Datasheet
  • 1: $1.10000
  • 10: $0.96800
  • 25: $0.91101

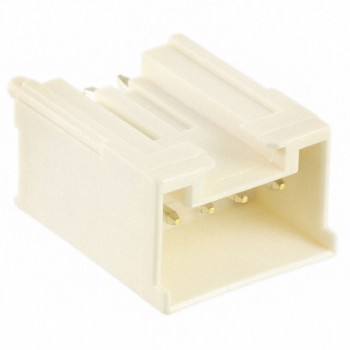

917896-1

CONN HEADER VERT 4POS 2.5MM

917896-1 Datasheet
  • 1: $1.56000
  • 450: $1.17467
  • 900: $1.06281

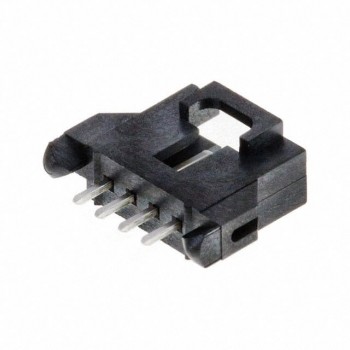

1719720004
