0466220300

Woodhead - Molex
In Stock: 2,155

Can ship immediately

Pricing:
  • 1$1.53
  • 230$1.18774
  • 460$1.07463
  • 690$0.9898
  • 1,150$0.8484
  • 1,610$0.82012
  • 5,750$0.75225
  • 11,500$0.73528

Quote It

Technical Details

  • Series:Micro-Fit 3.0 BMI 46622
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.350" (8.89mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:60.0µin (1.52µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Board Guide
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0559321410

CONN HEADER VERT 14POS 2MM

0559321410 Datasheet
  • 1: $1.09000
  • 10: $0.95577
  • 100: $0.82446

57102-F08-05ULF

CONN HEADER VERT 10POS 2MM

57102-F08-05ULF Datasheet
  • 1: $1.08000
  • 58: $0.85302
  • 116: $0.81596

0535170610

CONN HEADER VERT 6POS 2.5MM

0535170610 Datasheet
  • 1: $1.10000
  • 10: $0.96275
  • 100: $0.83106

1-2232511-5

CONN HEADER VERT 5POS 5MM

1-2232511-5 Datasheet
  • 1: $1.09000
  • 10: $0.96200
  • 100: $0.82990

0908140710

CONN HEADER SMD 10POS 1.27MM

0908140710 Datasheet
  • 1: $1.10000
  • 10: $0.96900
  • 25: $0.91200

1376386-1

CONN HEADER VERT 4POS 5MM

1376386-1 Datasheet
  • 1: $1.10000
  • 10: $0.96800
  • 25: $0.91101

917896-1

CONN HEADER VERT 4POS 2.5MM

917896-1 Datasheet
  • 1: $1.56000
  • 450: $1.17467
  • 900: $1.06281

1719720004

CONN HEADER VERT 4POS 2.54MM

1719720004 Datasheet
  • 1: $1.11000
  • 30: $0.91600
  • 120: $0.83950

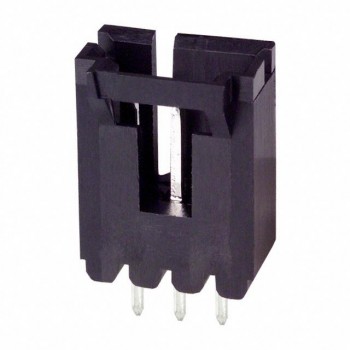

103639-2

CONN HEADER VERT 3POS 2.54MM

103639-2 Datasheet
  • 1: $1.11000
  • 54: $0.88389
  • 108: $0.84554

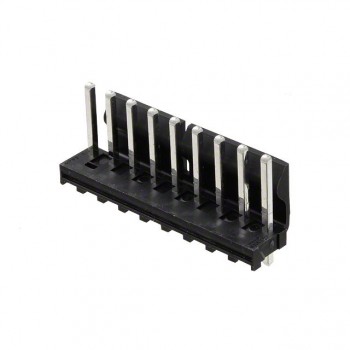

1718130009
