DF1-10P-2.5DSA(05)

Hirose
In Stock: 4,636

Can ship immediately

Pricing:
  • 1$0.63
  • 10$0.59535
  • 100$0.45643
  • 500$0.3969
  • 1,000$0.32744

Quote It

Technical Details

  • Series:DF1
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.177" (4.50mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.394" (10.00mm)
  • Insulation Height:0.295" (7.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:39.4µin (1.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-30°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Brown
  • Current Rating (Amps):3A
  • Voltage Rating:250V

Related Products


172732-4

CONN HEADER VERT 4POS 2.5MM

172732-4 Datasheet
  • 1: $0.63000
  • 10: $0.58869
  • 100: $0.45102

0050290057

CONN HEADER VERT 8POS 2.54MM

0050290057 Datasheet
  • 1: $0.63000
  • 10: $0.59300
  • 100: $0.45470

1734598-3

CONN HEADER VERT 3POS 1.25MM

1734598-3 Datasheet
  • 1: $0.64000
  • 10: $0.59665
  • 110: $0.45720

2-644803-3

CONN HEADER R/A 3POS 2.54MM

2-644803-3 Datasheet
  • 1: $0.64000
  • 10: $0.60357
  • 100: $0.47173

0532583006

CONN HEADER VERT 6POS 3.5MM

0532583006 Datasheet
  • 1: $0.64000
  • 10: $0.60295
  • 450: $0.42231

1-1123723-0

CONN HEADER VERT 10POS 3.96MM

1-1123723-0 Datasheet
  • 1: $0.64000
  • 10: $0.60047
  • 100: $0.46871

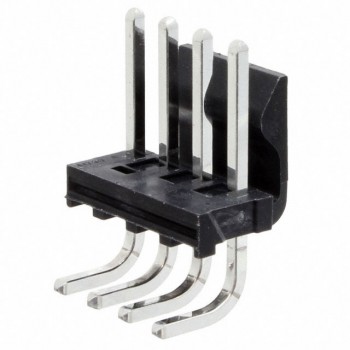

1718140004

CONN HEADER R/A 4POS 3.96MM

1718140004 Datasheet
  • 1: $0.64000
  • 10: $0.60275
  • 100: $0.46223

M20-9961245

CONN HEADER R/A 12POS 2.54MM

M20-9961245 Datasheet
  • 1: $0.64000
  • 10: $0.60480
  • 100: $0.46368

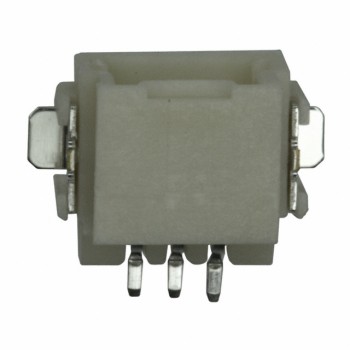

292227-3

CONN HEADER SMD R/A 3POS 1.5MM

292227-3 Datasheet
  • 1: $1.02000
  • 700: $0.69576
  • 1400: $0.62619

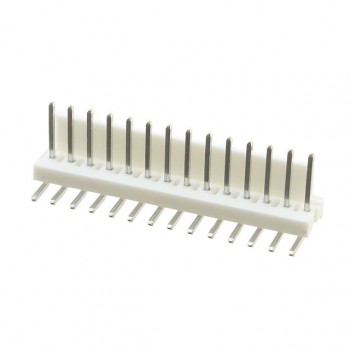

1-640455-4
