0050290057

Woodhead - Molex
In Stock: 3,039

Can ship immediately

Pricing:
  • 1$0.63
  • 10$0.593
  • 100$0.4547
  • 500$0.3954
  • 1,000$0.32621
  • 5,000$0.28667
  • 10,000$0.2669

Quote It

Technical Details

  • Series:KK254, 6373
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.286" (7.26mm)



  • Contact Length - Post:0.289" (7.34mm)
  • Overall Contact Length:0.700" (17.78mm)
  • Insulation Height:0.322" (8.18mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:60.0µin (1.52µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:White
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


1734598-3

CONN HEADER VERT 3POS 1.25MM

1734598-3 Datasheet
  • 1: $0.64000
  • 10: $0.59665
  • 110: $0.45720

2-644803-3

CONN HEADER R/A 3POS 2.54MM

2-644803-3 Datasheet
  • 1: $0.64000
  • 10: $0.60357
  • 100: $0.47173

0532583006

CONN HEADER VERT 6POS 3.5MM

0532583006 Datasheet
  • 1: $0.64000
  • 10: $0.60295
  • 450: $0.42231

1-1123723-0

CONN HEADER VERT 10POS 3.96MM

1-1123723-0 Datasheet
  • 1: $0.64000
  • 10: $0.60047
  • 100: $0.46871

1718140004

CONN HEADER R/A 4POS 3.96MM

1718140004 Datasheet
  • 1: $0.64000
  • 10: $0.60275
  • 100: $0.46223

M20-9961245

CONN HEADER R/A 12POS 2.54MM

M20-9961245 Datasheet
  • 1: $0.64000
  • 10: $0.60480
  • 100: $0.46368

292227-3

CONN HEADER SMD R/A 3POS 1.5MM

292227-3 Datasheet
  • 1: $1.02000
  • 700: $0.69576
  • 1400: $0.62619

1-640455-4

CONN HEADER R/A 14POS 2.54MM

1-640455-4 Datasheet
  • 1: $0.65000
  • 10: $0.57331
  • 100: $0.50021

0010081042

CONN HEADER VERT 4POS 5.08MM

0010081042 Datasheet
  • 1: $0.65000
  • 10: $0.60700
  • 100: $0.46510

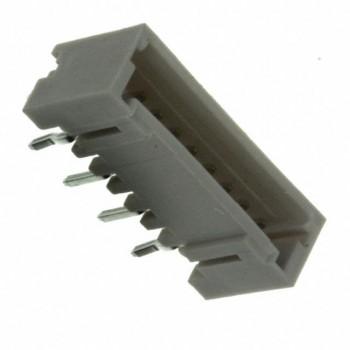

292207-9
